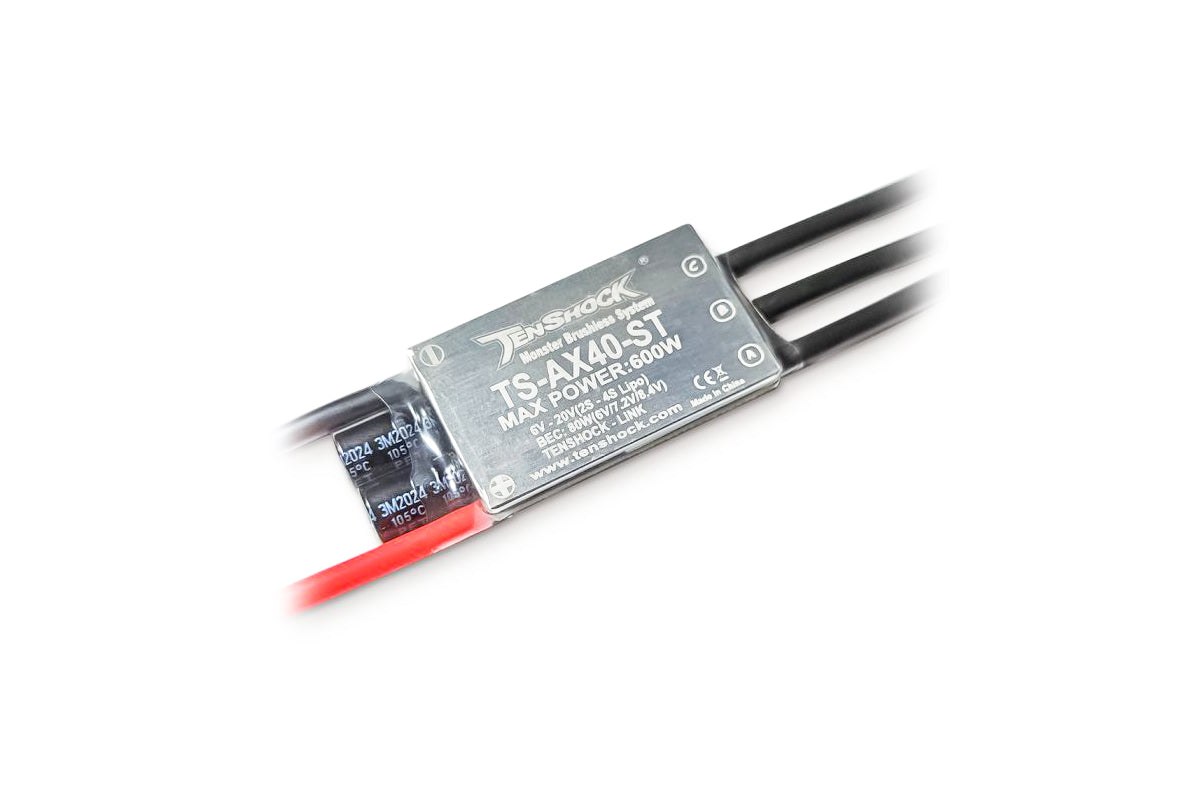

TS-AX40-ST Brushless Electronic Controller

Type: ESC

Looking for the perfect ESC for your F5J glider buildout? The TS-AX40-ST from Tenshock can handle so much power with great linear output, perfectly matched with the Tenshock motors for a slow, level flight when trying to work that light lift during the launch window with the ability to deliver explosive power if you don't get that low level thermal and need to punch out to height in the last few seconds.


Product model: TS-AX40-ST
Basic Parameters:
Length: 40mm
Width: 25mm
Height: 9mm
Weight:(Wire not included) 25g
Degree of protection: IP52
Cooling mode: Wind cooling
Li-PO Quantity: 2S-4S
Max Current: 40A
Max Power: 600W
Max/RPM: 120000rpm(4 Poles)
BEC: Yes
BEC Power: Max 80W
Input Wire: 14#100mm(Red/Black)
Output Wire: 14#80mm(Black)
PWM Signal line: JR/60 Core(200mm)
Function settings:
Menu language: Yes(Chinese / English)
MotorRotation: Yes(CW/CCW)
BatteryType: yes(NI-MH/LiPo)
VoltageProtect: Yes
BECVoltage : Yes(6V/7.2V/8.4V)
Timing : Yes
StartingStreng: Yes
BrakeForce: Yes
TempProtect: Yes
PWM: Yes(6K/8K/16K)
Special features:
Brake lock function Yes
Historical Data Record: No
