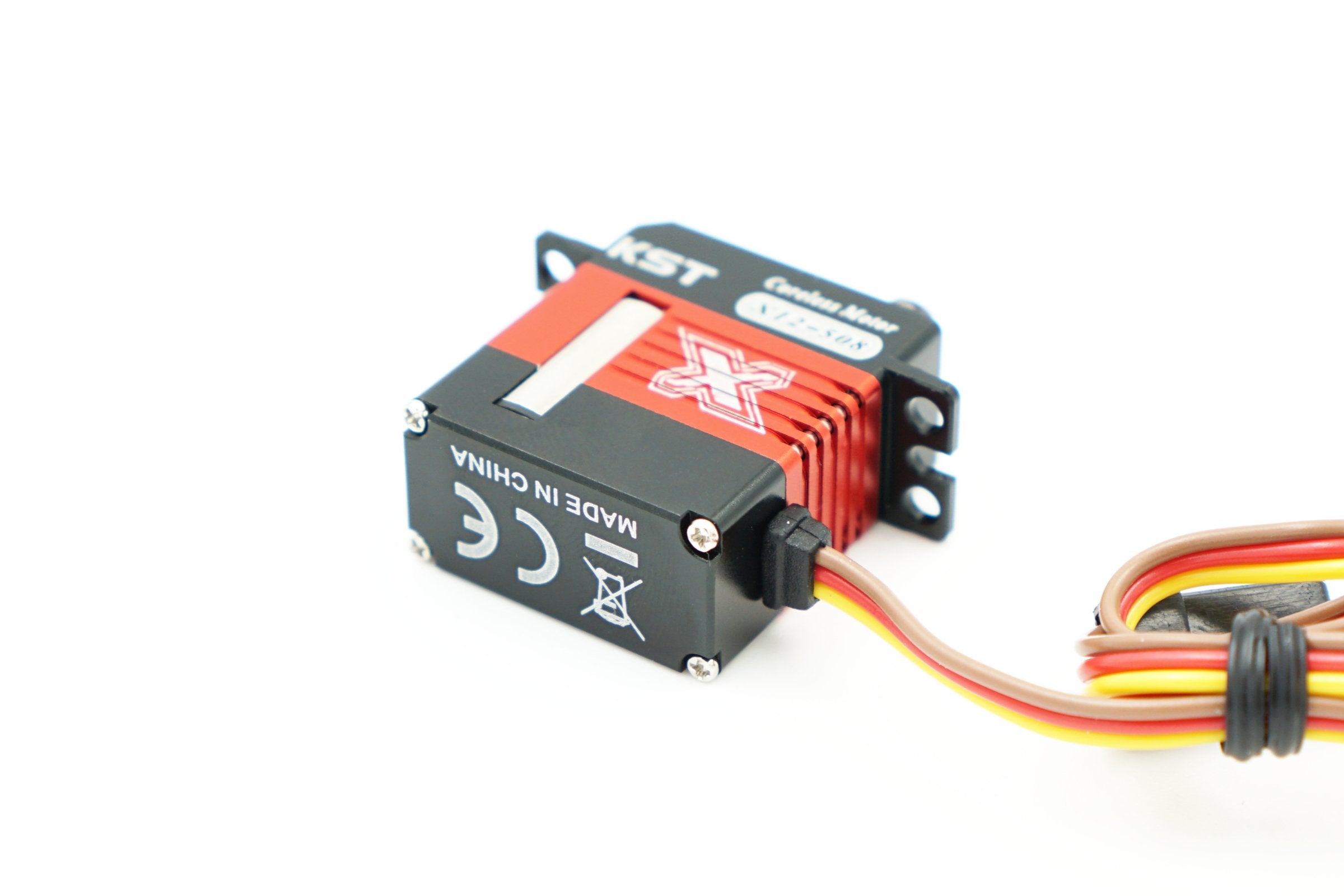

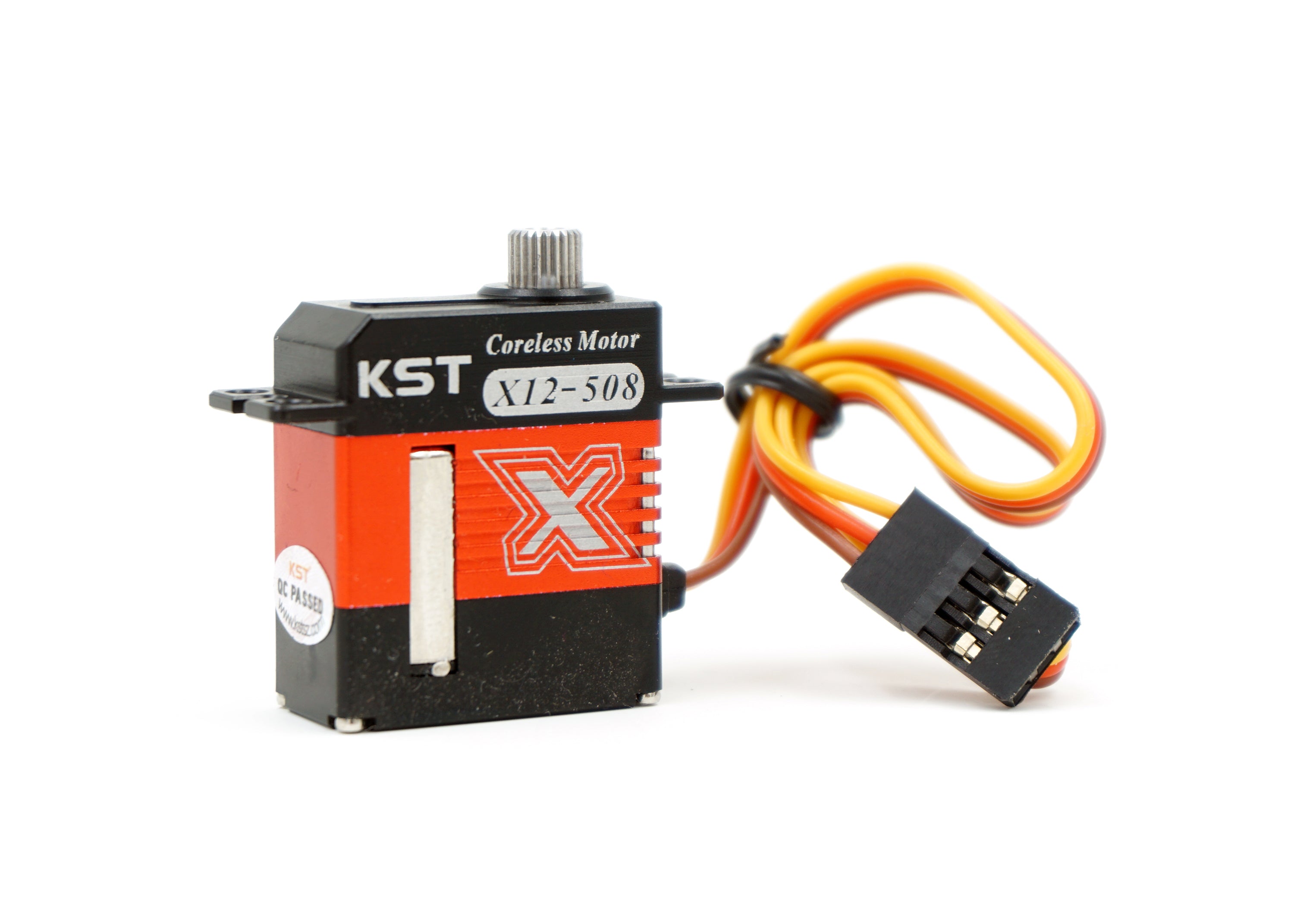

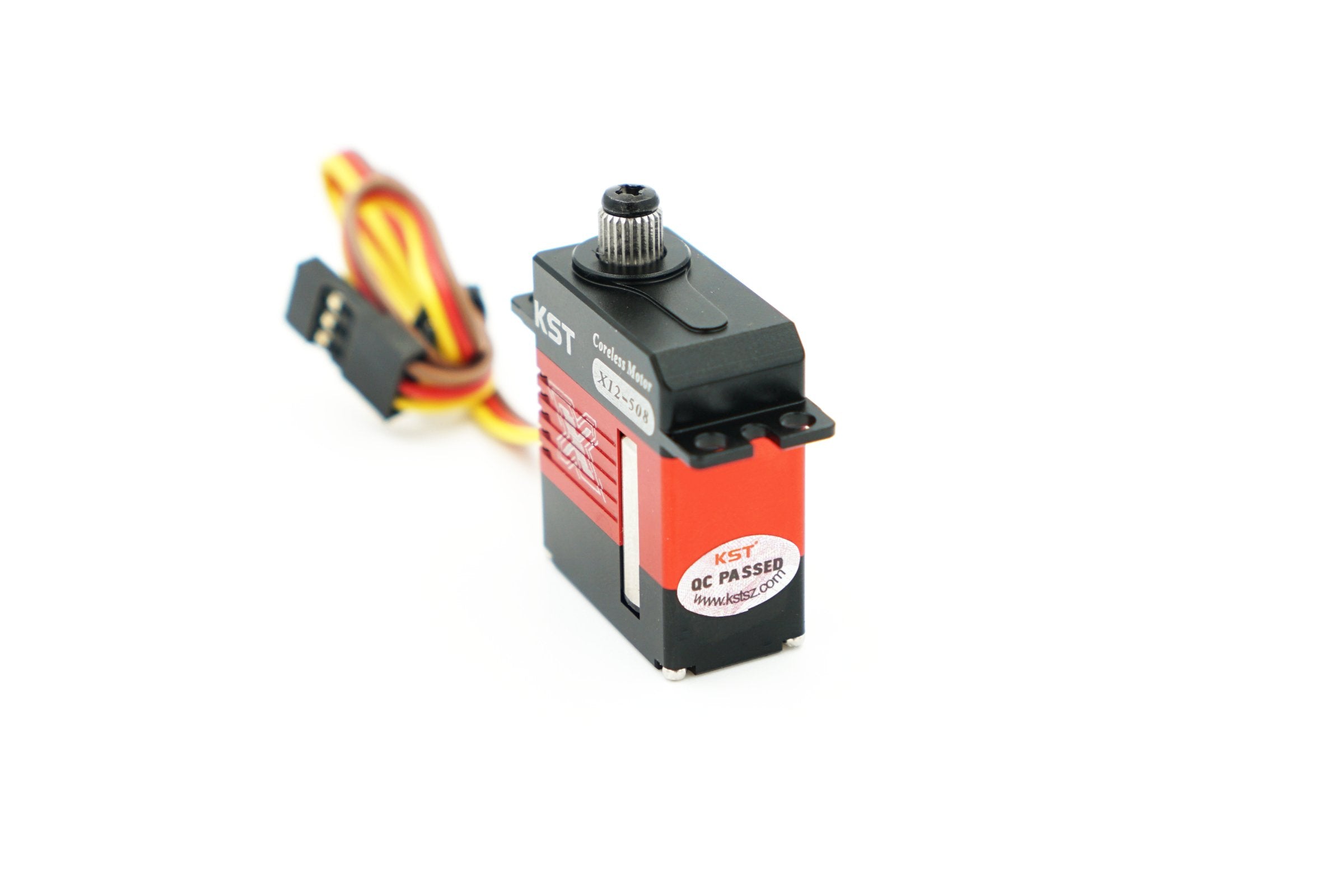

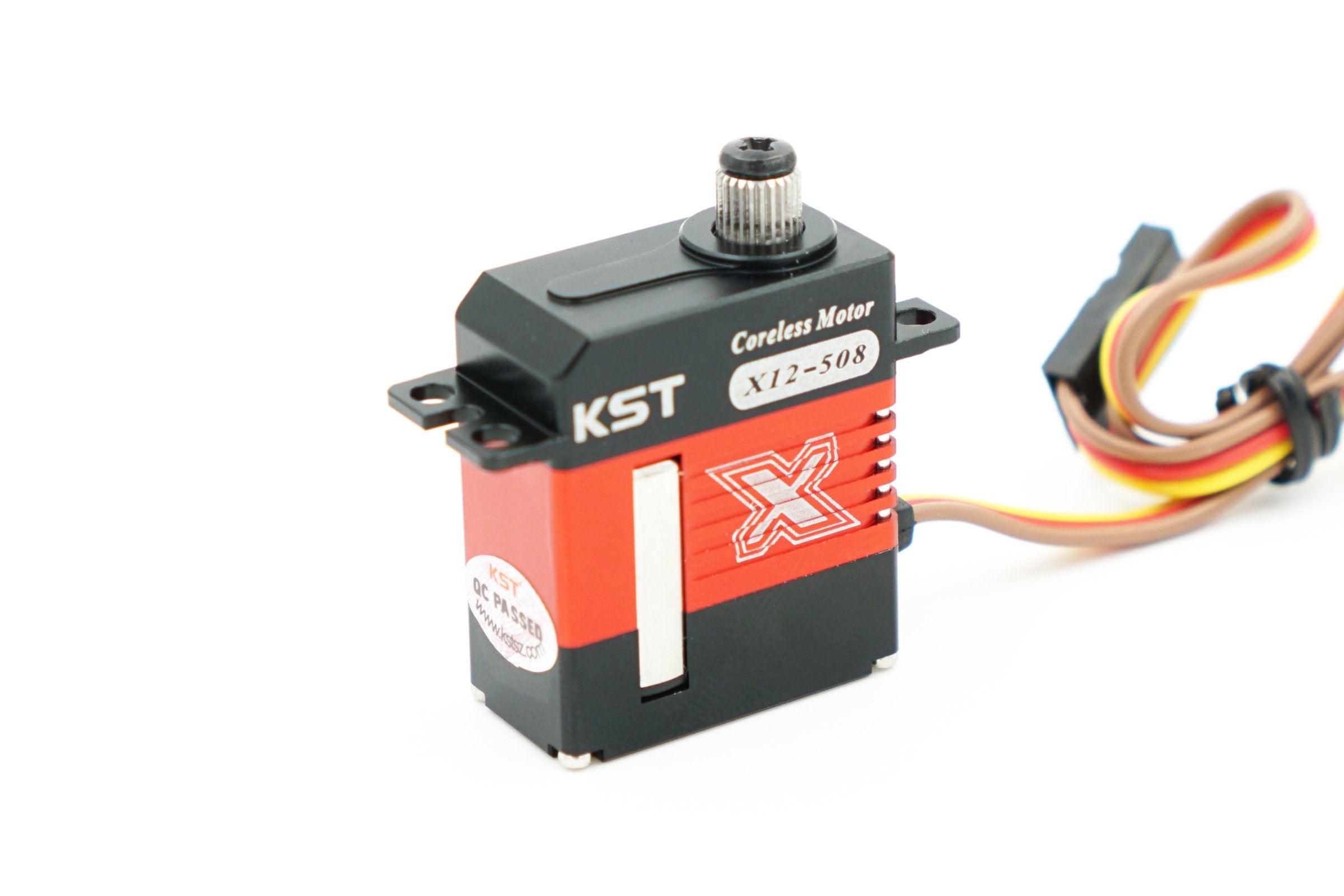

KST X12-508

by KST
Type: Servos

A higher torque high-voltage servo perfect for sailplane fuselages and as a cyclic servo for 380/420 size helicopters. Buttery smooth operation, high torque, and high accuracy defines this as one of the best servos on the market right now for it's applications.

Great for fuselage installations on F3J, F3F, and F3B models. Awesome for size 380/420 helis as cyclic servo.

Technical Specifications:

  • Case Dimensions: 23mm x 12mm x 27.5mm
  • Weight: 20g

  • Operation Voltage (Rated): DC7.4V

  • Operation Voltage Range: DC4.8V - 8.4V

  • Torque: 4.20Kg.cm @ 6.0V
                 5.20Kg.cm @ 7.4V
                 6.20Kg.cm @ 8.4V

  • Speed: 0.09sec/60° @ 6.0V
                0.08sec/60° @ 7.4V
                0.07sec/60° @ 8.4V

  • Travel Angle: ±50° when 1,000 - 2,000us

  • Operating Temperature Range: -20°C to +65°C

KST X12-508 Spec Sheet
