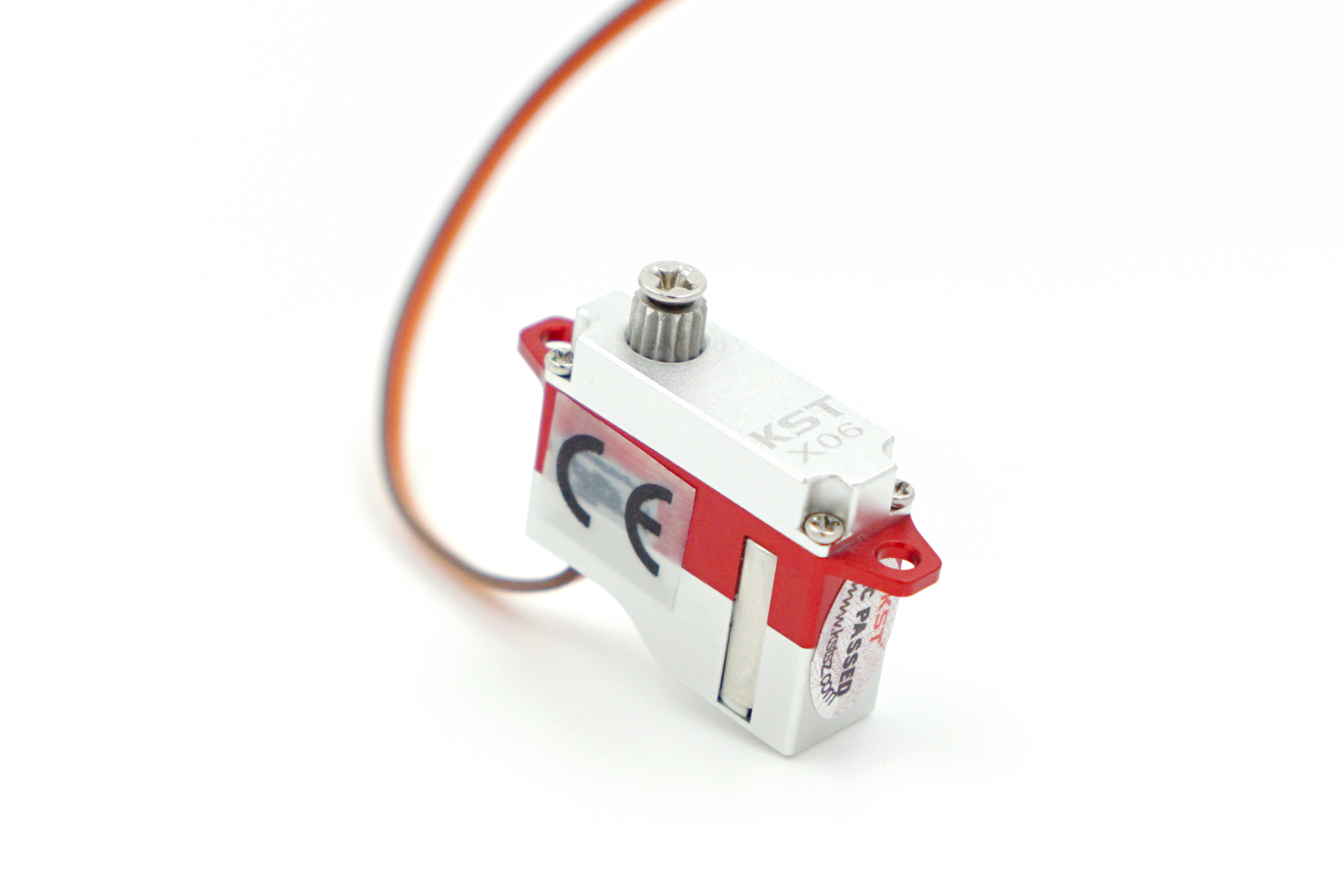

KST X06 v6.0

$40.00
by KST
Type: Servos
The X06 v6.0 is the option for regular mounting tabs - most suitable for fuselage or other installations where the servo is upright.

Performance in a tiny package. The v6 is now fully programmable with the KST Tool #1 and sports a new custom chip similar to the A08 v6 servos for higher accuracy.

The KST X06 v6.0 has been years in the making, leading the market in ultra-small high performance servos. At 7mm thick and a very small footprint, the X06 v6.0 is the perfect fit for 1-meter DLGs and other small gliders.

Full metal construction sets the X06 v6.0 apart from its competitors with plastic mechanicals which flex under pressure. The high torque and precision of the X06 allows you to setup your model to its highest performance potential.

Technical Specifications:
  • Case Dimensions: 20mm x 7mm x 16.6mm ±0.2mm

  • Weight: 6g ±10%

  • Operation Voltage (Rated): DC6.0V

  • Operation Voltage Range: DC3.8V - 8.4V

  • Rated Torque: 4N.cm @ 6.0V

  • Stalling Torque: 8N.cm @ 3.8V
                             15N.cm @ 6.0V
                             18N.cm @ 8.4V

  • No-Load Speed: 0.12sec/60° @ 3.8V
                               0.08sec/60° @ 6.0V
                               0.07sec/60° @ 8.4V

  • Rated Speed: 0.20sec/60° @ 6.0V

  • Travel Angle: ±60° = 120° total travel

  • Operating Temperature Range: -10°C to +65°C
KST X06 v6.0 Spec Sheet
