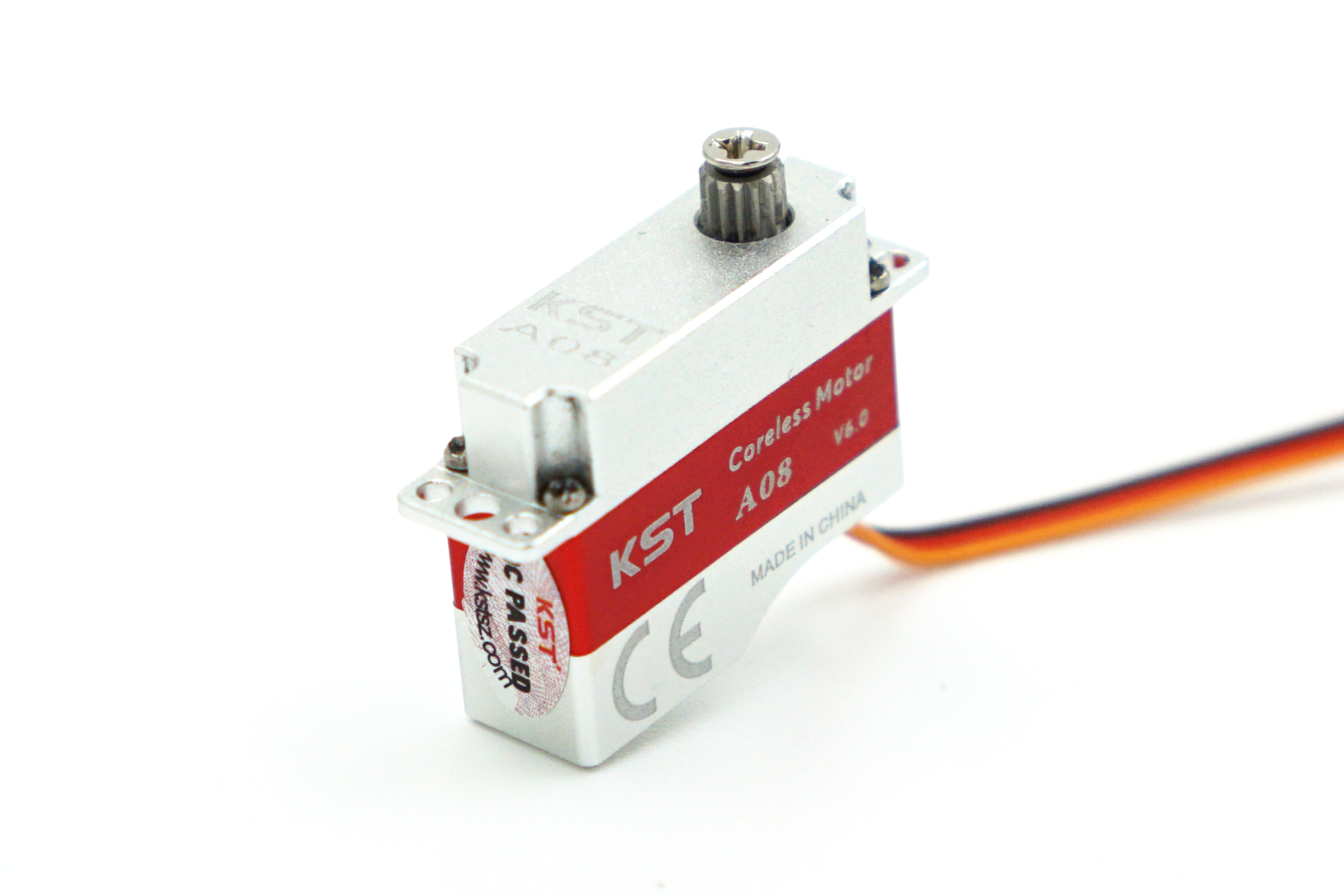

KST A08 v6.0

$36.00 Regular price $45.00
by KST
Type: Servos

KST A08 v6.0 is backordered and will ship as soon as it is back in stock.

If you're looking for the best high-performance servo for your DLG, F5K glider, or any other demanding model that demands a reliable, precise, and high-torque servo... the A08 V6 is for you.


The brand new A08 V6 series servos are the next step up in KST's high-performance micro servo range. Even though it looks similar to the X08 servos at first glance, is high-voltage capable, and is also 8mm thick, the similarities end there. The A08 V6 is an all-around upgrade.

The A08 V6 uses a brand new gearset, designed for higher precision and more resistance to damage. The motor is completed encased to prevent accidental damage to the wiring and motor. Even though the A08 V6 is shorter than the X08 servos, the torque remains the same high-torque output to properly hold the center and prevent flutter.

For advanced users, the A08 V6 is programmable via the KST Tool #1 to adjust the servo's endpoints, centre, and direction for perfect installations. The KST Tool #1 is sold separately.

KST A08 v6.0 Spec Sheet

Technical Specifications:

  • Programmable with KST Tool #1 (end points, centre, direction)
  • Case Dimensions: 23.5mm x 8mm x 19mm
  • Weight: 7g ± 10%
  • Operation Voltage: DC7.4V
  • Operation Voltage Range: DC3.8V - 8.4V
  • Stalling Torque: 2.8Kg.cm @ 7.4V
  • Speed: 0.20sec/60° @ 4.2V
                0.13sec/60° @ 6.0V
                0.09sec/60° @ 8.4V

*Note, KST servos cannot be shipped to Germany, Austria, and Luxembourg by itself. Only if purchased with models.*
